LH 11

modular

Indoor Lighting Unit

Optimized for use in interior spaces and high bay illumination

  • Typical ratio of 1.2 for luminaire spacing to mounting heightwith symmetrical radiation
  • Numerous options for attaching and configuring
  • Power rating up to 600 mA, dimmable
  • Highest system efficiency
  • Sustainable and future-oriented
  • Multichip technology
  • ESD-protection
  • CRI 70 min

Downloads

Photometric files
Product data sheets

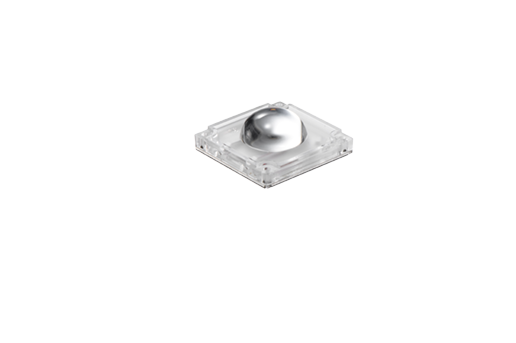

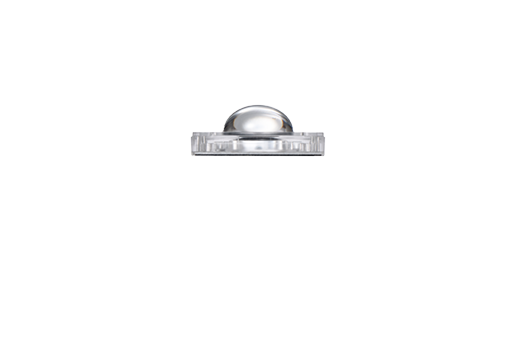

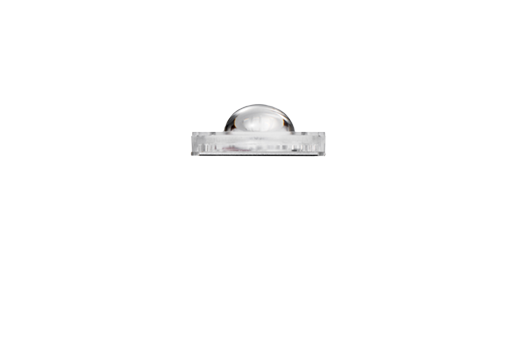

Lens optics

Assembly Structure

Cross section

Radiation characteristics

Intensity distribution

Illuminance distribution

LED board

1 PCB VF 12 V

Variant 01

Article no. see table below + variant
IP67 rating in combination with mounting profile

Variant 02

Article no. see table below + variant
IP67 rated

2 LED PCB VF 23 V

Variante 01

Article no. see table below + variant
IP67 rating in combination with mounting profile

Variante 02

Article no. see table below + variant
IP67 rated


4 LED PCB VF 47 V

Variant 01

Article no. see table below + variant
IP67 rating in combination with mounting profile

Variante 02

Article no. see table below + variant
IP67 rated

Mounting Profile (optional)

Suitable for lighting units of variants 01 and 02

1 profile

Article no. 40 20000 30

2 profile

Article no. 40 20000 20

4 profile

Article no. 40 20000 40
