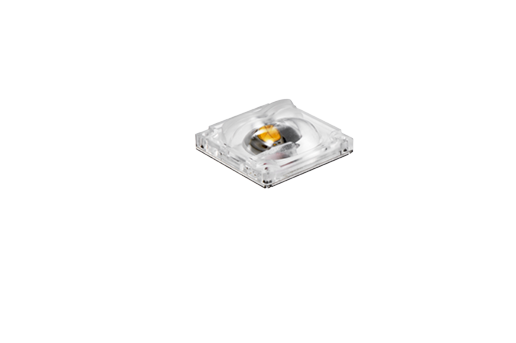

LP 13

modular

Large Area Lighting Unit

Optimized for open area illumination

  • Typical ratio of 4.0 for pole distance to mounting height
  • Typical ratio of 3.0 for length of the illuminated field forward to mounting height
  • Numerous options for attaching and configuring
  • Power rating up to 600 mA, dimmable
  • Highest system efficiency
  • Sustainable and future-oriented
  • Multichip technology
  • ESD-protection
  • CRI 70 min

Downloads

Photometric Files
Data Sheet

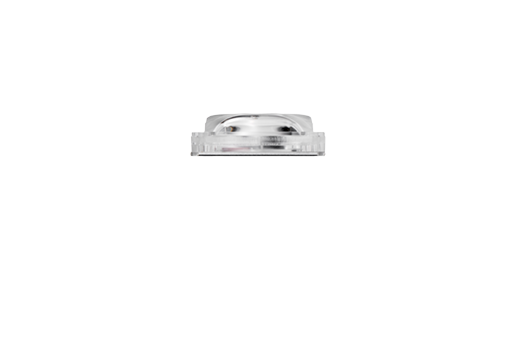

Lens optics

Assembly structure

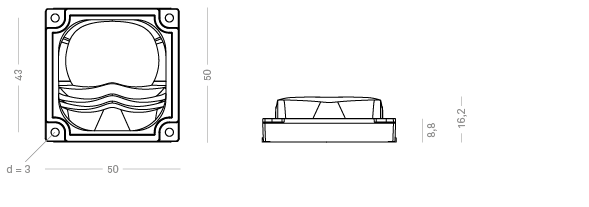

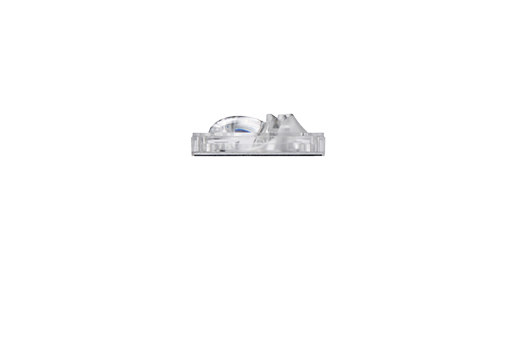

Cross section

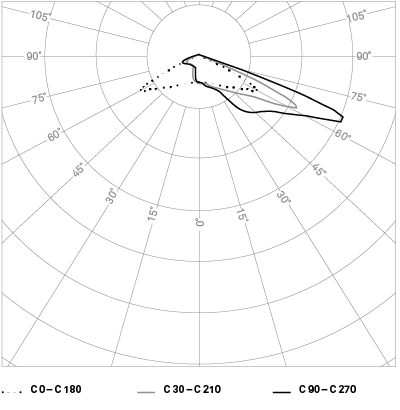

Radiation Characteristics

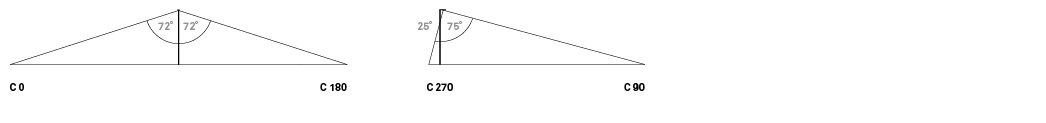

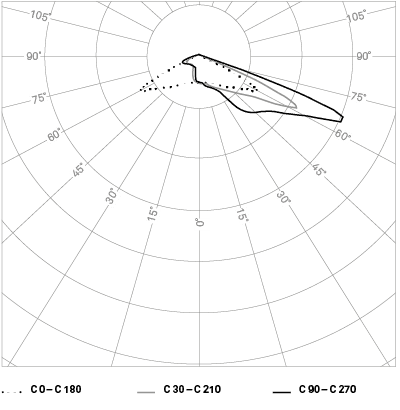

Intensity distribution

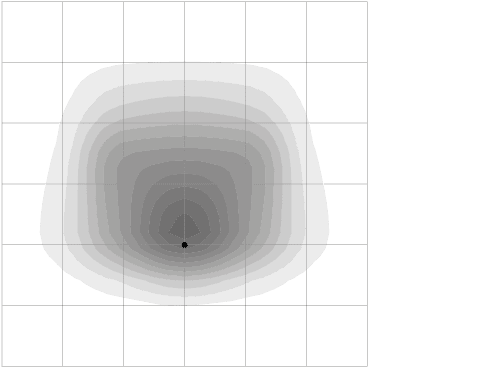

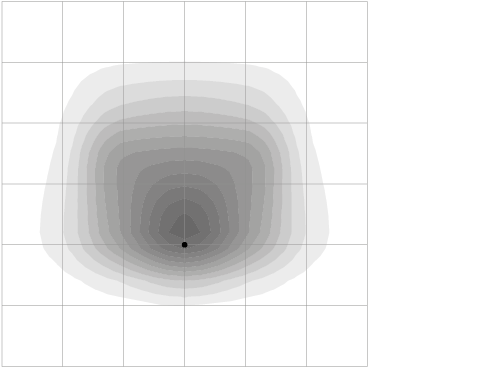

Illuminance distribution

LED board

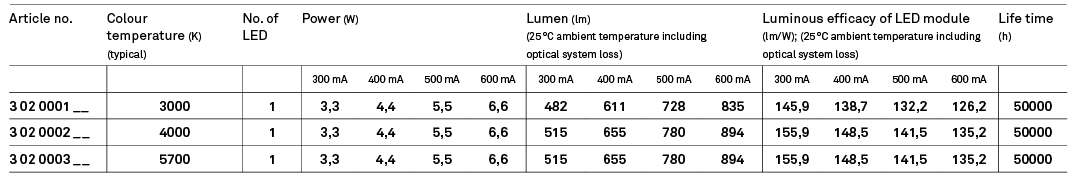

1 PCB VF 12 V

Variant 01

Article no.: See table + variant
Rated IP67 in combination with mounting profile

Variant 02

Article no.: See table + variant
Rated IP67

2 PCB VF 23 V

Variant 01

Article no.: See table + variant
Rated IP67 in combination with mounting profile

Variante 02

Article no.: See table + variant
Rated IP67


4 PCB VF 47 V

Variant 01

Article no.: See table + variant
Rated IP67 in combination with mounting profile

Variante 02

Article no.: See table + variant
Rated IP67

Mounting profile (optional)

Suitable for lighting units of variants 01 and 02

1 Profile

Article no. 40 20000 30

2 Profile

Article no. 40 20000 20

4 Profile

Article no. 40 20000 40
