LP 16

modular

Walkway lighting unit

Optimized for the application in bollard lighting systems and for the illumination of streets and squares

  • Typical ratio of 10 for pole distance to mounting height
  • Typical ratio of 3 for length of the illuminated field forward to mounting height
  • Numerous options for attaching and configuring
  • Power rating up to 600mA, dimmable
  • Highest system efficiency
  • Sustainable and future oriented
  • Multichip technology
  • ESD-protection
  • CRI 70 min

Downloads

Photometric Files
Data Sheet

Lens optics

Assembly structure

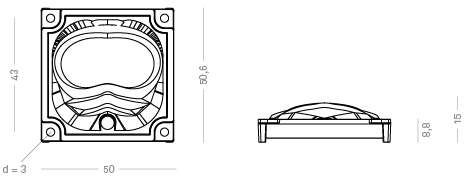

Cross section

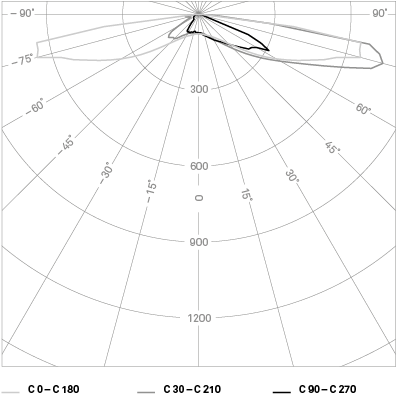

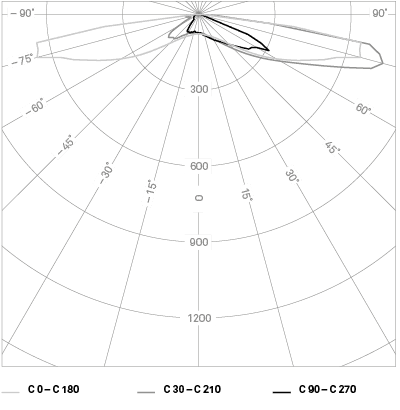

Radiation characteristics

Intensity distribution

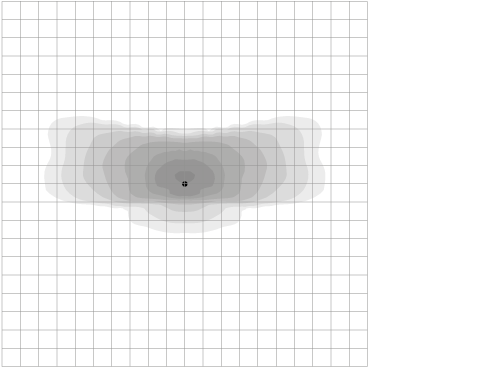

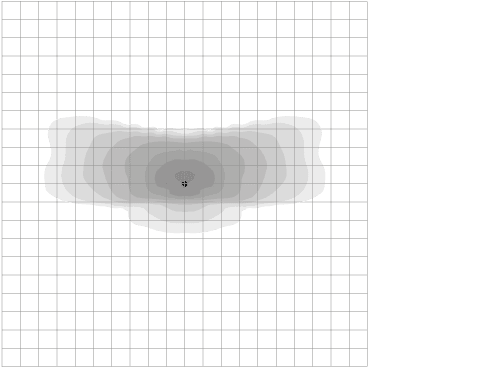

Illuminance distribution

LED board

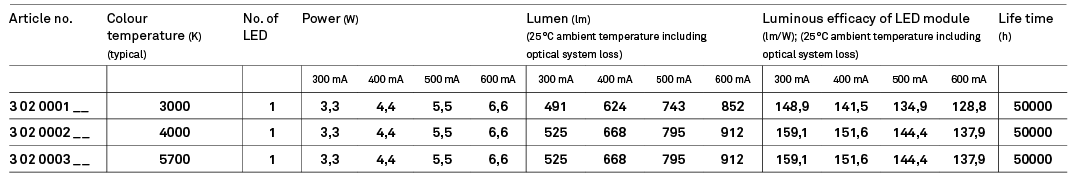

1 PCB VF 12 V

Variant 01

Article no: See table + Variant
Rated IP67 in combination with mounting profile

Variant 02

Article no: See table + Variant
Rated IP67

2 PCB VF 23 V

Variant 01

Article no: See table + Variant
Rated IP67 in combination with mounting profile

Variant 02

Article no: See table + Variant
Rated IP67


4 PCB VF 47 V

Variant 01

Article no: See table + Variant
Rated IP67 in combination with mounting profile

Variant 02

Article no: See table + Variant
Rated IP67

Mounting profile (optional)

Suitable for lighting units of variants 01 and 02

1 mounting profile

Article no. 40 20000 30

2 mounting profile

Article no. 40 20000 20

4 mounting profile

Article no. 40 20000 40
