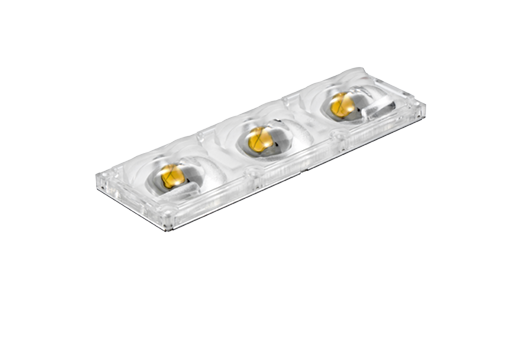

LP 33

modular

Large Area Lighting Unit

Optimized for open area illumination

  • Typical ratio of 4.0 for pole distance to mounting height
  • Typical ratio of 3.0 for length of the illuminated field forward to mounting height
  • Numerous options for attaching and configuring
  • Power rating up to 600 mA, dimmable
  • Highest system efficiency
  • Sustainable and future-oriented
  • Multichip technology
  • ESD-protection
  • CRI 70 min

Downloads

Photometric Files
Data Sheet

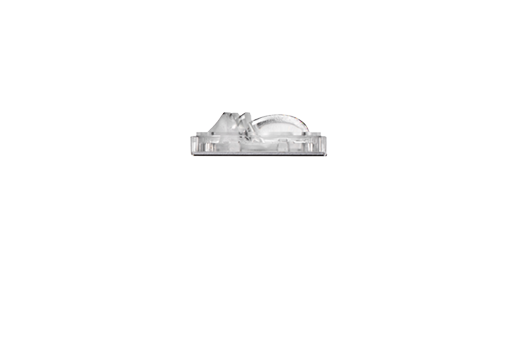

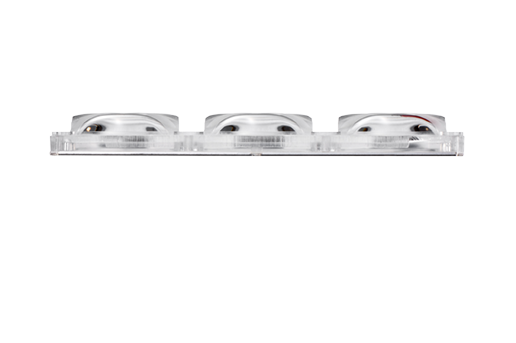

Lens optics

Assembly structure

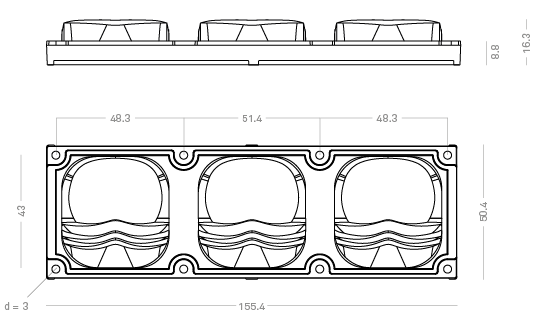

Cross section

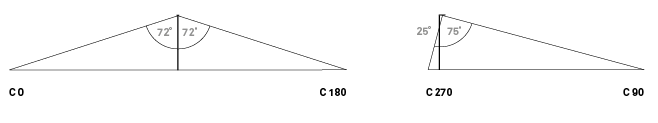

Radiation characteristics

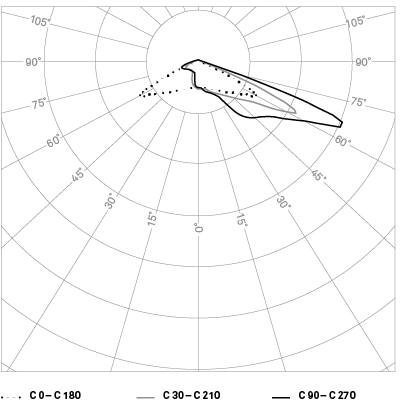

Intensity distribution

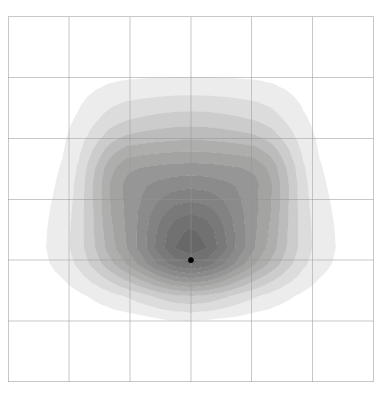

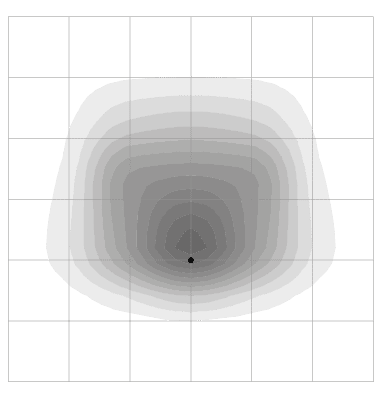

Illuminance distribution

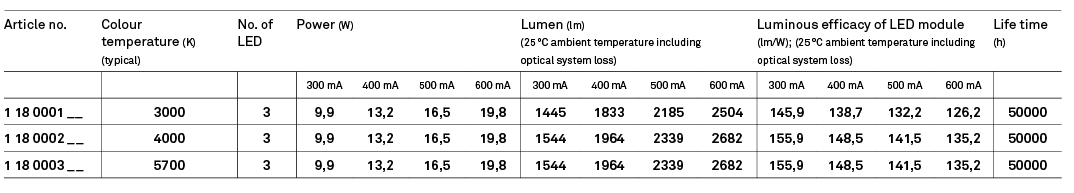

Variants

Variant 01: Side cable

Article no.: VF 35V
Rated IP67

Variant 02: Cable underneath

Article no.: See Table + Variant
IP67 in combination with mounting profile

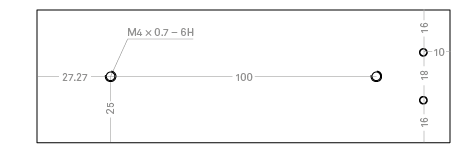

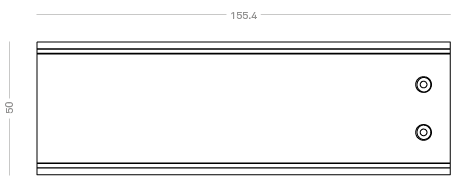

Mounting profile (optional)

Suitable for lighting units of variants 01 and 02

3 Profile

Article no. 40 20000 10
