LS 15

modular

Street lighting unit

Optimized for the S-classes of street lighting in accodance with EN13201; small streets like pedestrian and bike ways.

  • Typical ratio of 9 for pole distance to mounting height
  • Typical ratio of 0.75 for length of the illuminated field forward to mounting height
  • Numerous options for attaching and configuring
  • Power rating up to 600 mA, dimmable
  • Highest system efficiency
  • Sustainable and future-oriented
  • Multichip technology
  • ESD-protection
  • CRI 70 min

Downloads

Data Sheet
Photometric Files

Lens optics

Assembly structure

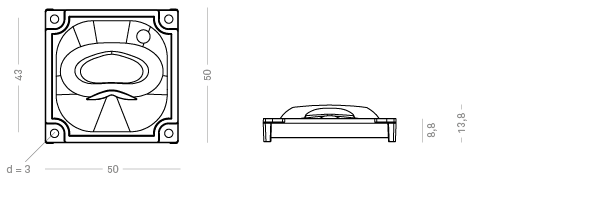

Cross section

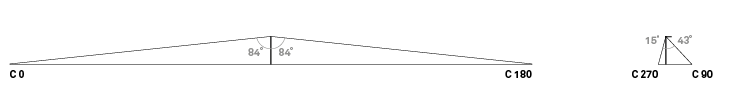

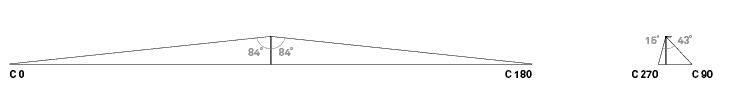

Radiation characteristics

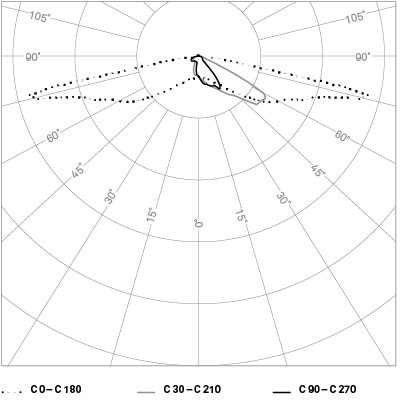

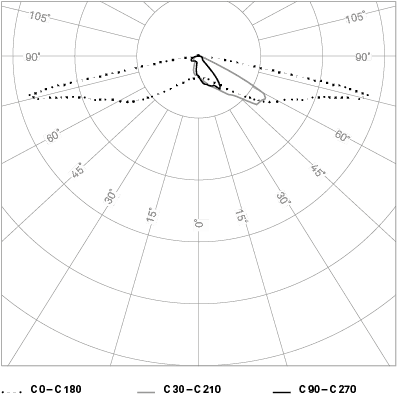

Intensity distribution

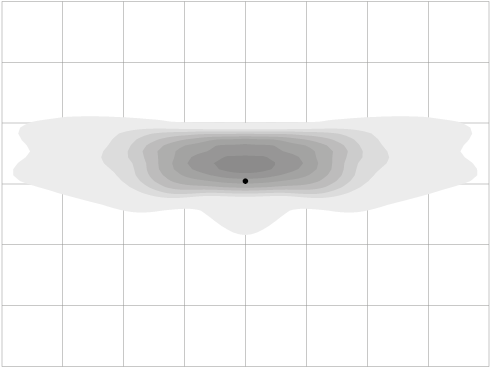

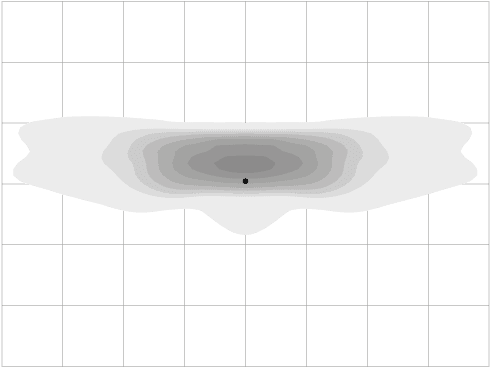

Illuminance distribution

LED board

1 PCB VF 12 V

Variant 01

Article no.: see table + variant
rated IP67 in combination with mounting profile

Variant 02

Article no.: see table + variant
Rated IP67

2 PCB VF 23 V

Variant 01

Article no.: see table + variant
Rated IP67 in combination with mounting profile

Variante 02

Article no.: see table + variant
Rated IP67


4 PCB VF 47 V

Variant 01

Article no.: see table + variant
Rated IP67 in combination with mounting profile

Variant 02

Rated IP67

Mounting profile (optional)

Suitable for lighting units of variants 01 and 02

1 mounting profile

Article no. 40 20000 30

2 Mounting profile

Article no. 40 20000 20

4 mounting profile

Article no. 40 20000 40
