LS 33 S

modular

Street lighting unit

Optimized for the S-classes of street lighting in accordance with EN 13201

  • Typical ratio of 5.5 for pole distance to mounting height
  • Numerous options for attaching and configuring
  • Power rating up to 600 mA, dimmable
  • Highest system efficiency
  • Sustainable and future-oriented
  • Multichip technology
  • ESD-protection
  • CRI 70 min

Downloads

Data Sheet
Photometric Files

Lens optics

Assembly structure

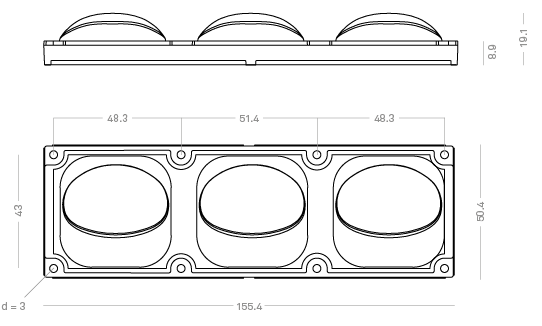

Cross section

Radiation characteristics

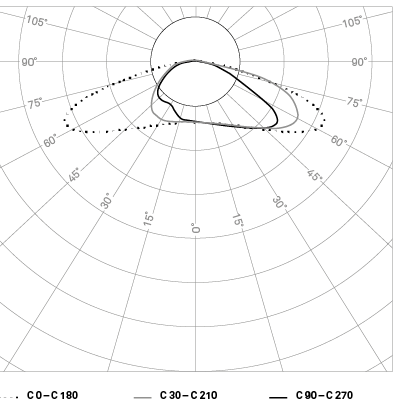

Intensity distribution

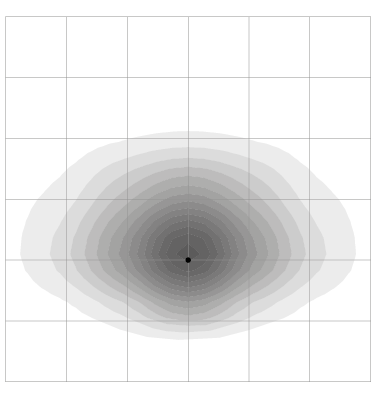

Illuminance distribution

Variants

Variant 01: Side cable

Article no.: VF 35V
Rated IP67

Variant 02: Cable underneath

Article no.: see table and variant
Rated IP67 in combination with mounting profile

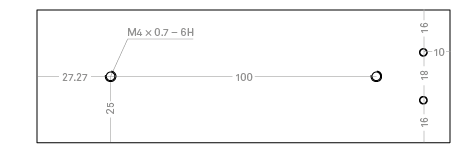

Mounting profile (optional)

Suitable for lighting units of variants 01 and 02

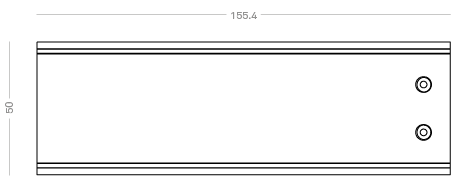

3 mounting profile

Article no. 40 20000 10
